Product details

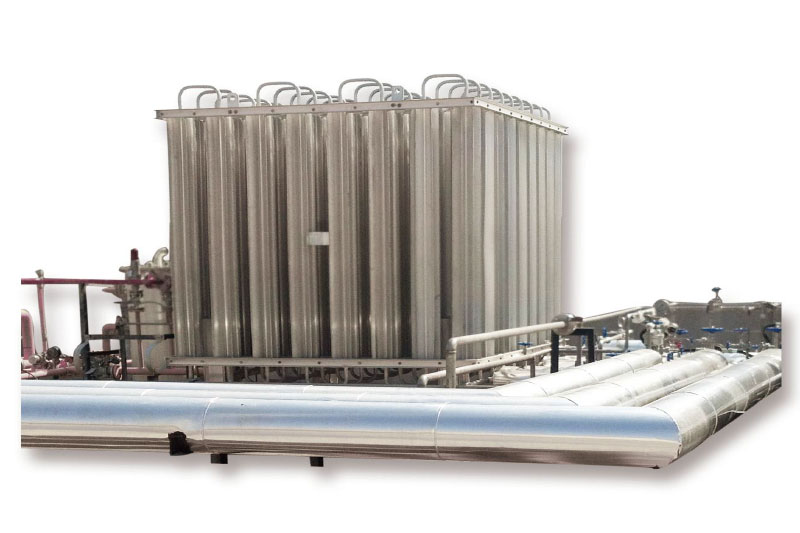

The ambient air vaporizer uses the natural convection of air to heat the exchange tubes containing low-temperature liquid, fully vaporizing it into gas. It is an efficient and energy-saving heat exchange equipment that integrates ambient air and heating vaporization functions, serving as an alternative to heated vaporization products.
Structural Features:
No energy consumption, no pollution, environmentally friendly;
Easy installation and maintenance;
Specialized aluminum material for heat exchange, efficient, lightweight design with a long service life;
Special oversized diameter aluminum heat exchange tubes for rapid defrosting, effective internal fin structure significantly enhances the heat exchange;
Aesthetic 'bridge' connection design, eliminating thermal expansion and contraction stress during operation;
Special anti-oxidation treatment on the surface of the heat exchange tubes;
Optimized process design reduces pressure drop to a minimum, prevents any streaming issues, ensuring flow rate remains within safe limits;
Ample design margin;
Advanced high-pressure tube composite technology ensures full contact between the pressure tube and the heat exchange tube, guaranteeing efficient heat transfer;
Can be designed and manufactured to electronic grade standards.
Product Specifications:
Applicable Mediums: Liquid natural gas (LNG), liquefied petroleum gas (LPG), liquid oxygen (LOX), liquid nitrogen (LIN), liquid argon (LAR), liquid carbon dioxide (LCO2), ethylene (LC2H4), etc.
Flow Rate per Unit: 10-10,000 Nm3/h;
For higher flow rates and longer continuous full-load operation, multiple units can be used in parallel or in a switching configuration;
Design Conditions: Temperature -10°C, relative humidity 70%, continuous vaporization capacity for 8-12 hours.
